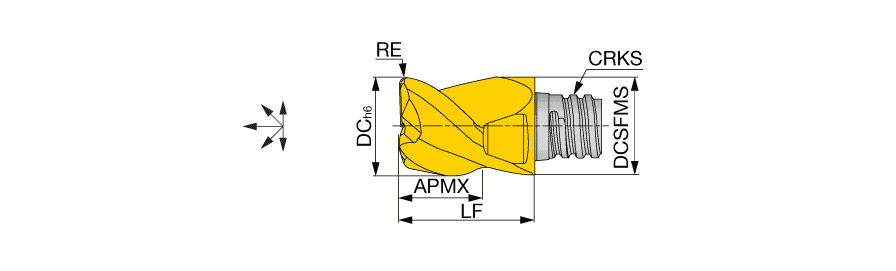

VEE050L31R125AU03S08 KS15F
End Mill Head; 1/2″ Dia. × 0.315″ LOC ; 3 FL ; Carbide ; Uncoated ; KS15F
| Application | | Shoulder Milling | | Grade | KS15F |
| Cutting Diameter (DC) | 1/2″ | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Corner Radius (RE) | 1/8″ | Maximum Feed per Tooth (fz(max)) | 0.0051 in/tooth |
| Cutting Diameter Maximum (DCX) | 1/2″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.315″ | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 0.65″ | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Family Description | Square, 3 flutes, roughing - finishing, for non-ferrous metal, general | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
