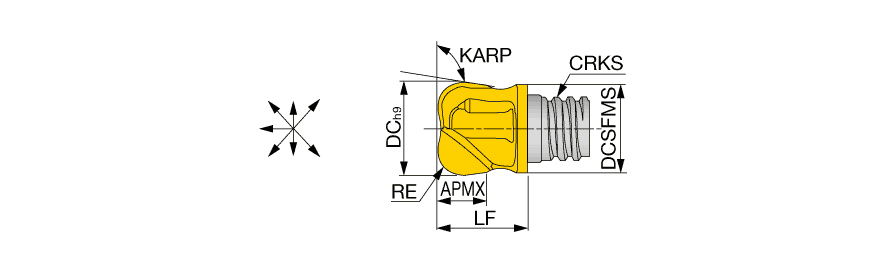

VRB062L31R187-U02S10 AH725
End Mill Head; 5/8″ Dia. × 0.31″ LOC ; 2 FL ; Carbide ; TiAlN ; AH725
| Application | | Profile Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 5/8″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.19″ | Maximum Feed per Tooth (fz(max)) | 0.0059 in/tooth |
| Cutting Diameter Maximum (DCX) | 5/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.31″ | Tool Type | Solid corner rounding endmills |
| Functional Length (LF) | 0.58″ | Body Material | Carbide |
Product Features
| Family Description | Radius, 2 flutes, roughing - semi finishing, economical | Country of Origin | ISRAEL |
| Remarks | Suitable for contouring operation Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
