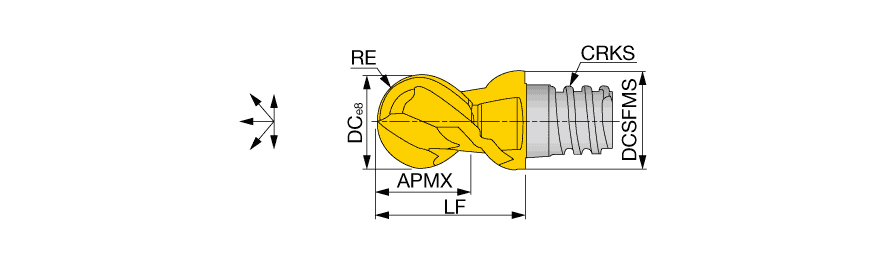

VBE0750L50-BGAU02S12 KS15F
End Mill Head; 3/4″ Dia. × 1/2″ LOC ; 2 FL ; Carbide ; Uncoated ; KS15F
| Application | | Profile Milling | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 3/4″ | Grade | KS15F |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | Uncoated |
| Flute Count (NOF) | 2 | Measurement Type | Inch |
| Corner Radius (RE) | 0.374″ | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/4″ | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 1/2″ | Body Material | Carbide |
| Functional Length (LF) | 1″ |
Product Features
| Family Description | Ball, 2 flutes, roughing - finishing, for non-ferrous metal, helix cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
