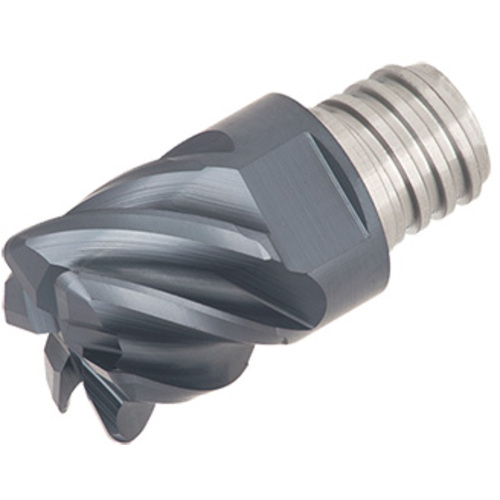

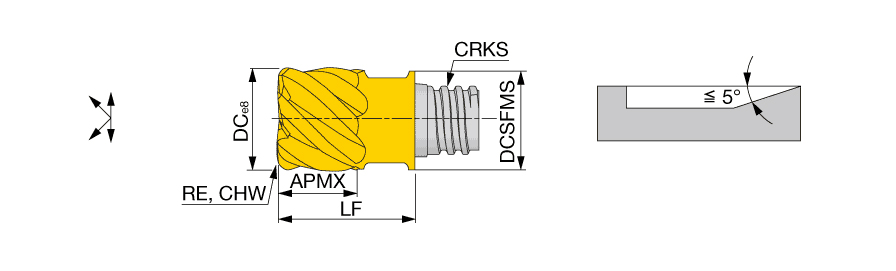

VEE080L05.0R10-06S05 AH725
End Mill Head; 8 mm Dia. × 5 mm LOC ; 6 FL ; Carbide ; TiAlN ; AH725
| Application | | Shoulder Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 8 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Cutting Diameter Maximum (DCX) | 8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Functional Length (LF) | 10 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 45 Degrees |
Product Features
| Family Description | Square, 6 flutes, roughing - finishing, small width of cut | Country of Origin | Israel |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench not included. |
Shipping Info
Package Weight
0.029
