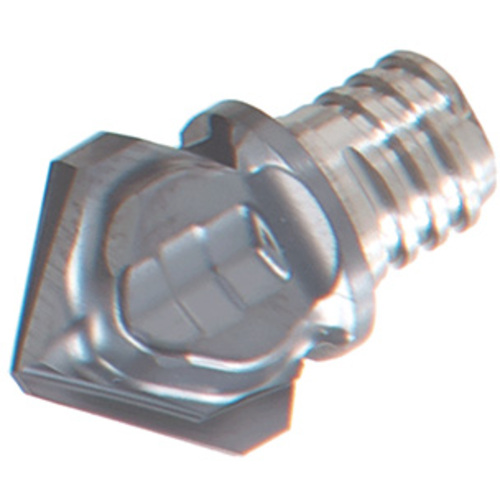

VCW118L05.0A45-02S06 AH725
End Mill Head; 1.2 mm Dia. × 5 mm LOC ; 2 FL ; Carbide ; TiAlN ; AH725

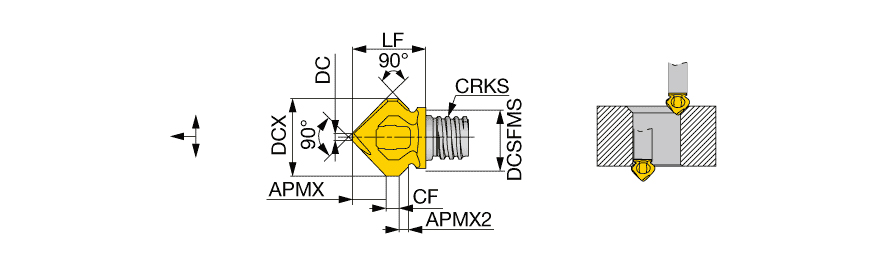

| Application | | Multi Functional tools | | Grade | AH725 |
| Cutting Diameter (DC) | 1.2 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 11.8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 11.2 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees |
Product Features
| Family Description | Chamfering, 2 flutes, chamfering angle: 45 degree, back chamfering capability | Country of Origin | Israel |
| Remarks | Available for chamfering of reverse side Torque: Recommended torque (Nm) for clamping. Some heads require different size of wrench. Wrench not included. |
Shipping Info
Package Weight
0.034
