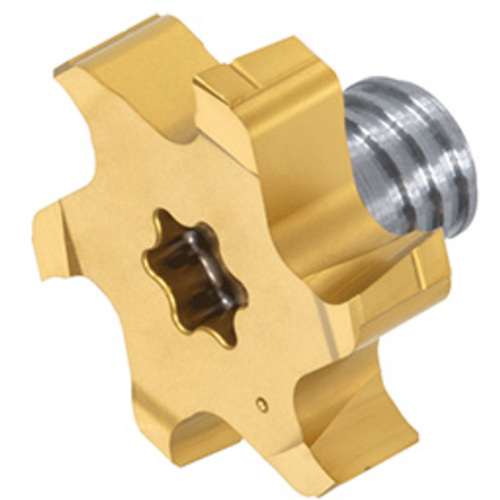

VTB165W4.00R04-06S06 GH130
End Mill Head; 16.5 mm Dia. × 4 mm LOC ; 6 FL ; Carbide ; TiCN ; GH130

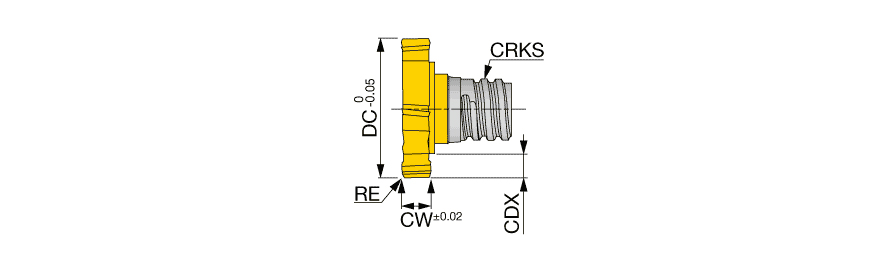

| Application | | Slot Milling | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 16.5 mm | Grade | GH130 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | | Coating | TiCN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 16.5 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 4 mm | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 4 mm | Body Material | Carbide |
| Functional Length (LF) | 4.57 mm |
Product Features
| Family Description | Slotting, 6 flutes, for T-slotting | Country of Origin | Israel |
| Remarks | Torque: Recommended torque (Nm) for clamping. |
Shipping Info
Package Weight
0.037
