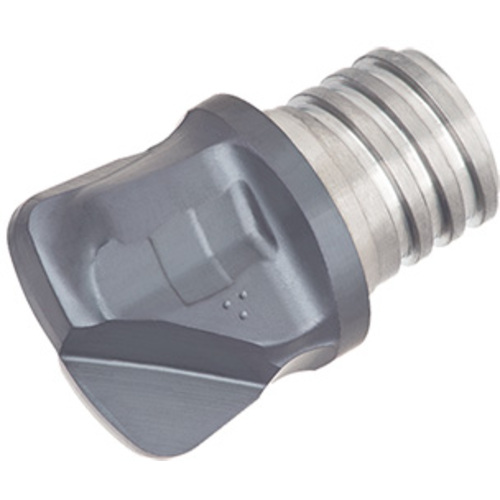

VFX100L00.6R20-02S06 AH725
End Mill Head; 10 mm Dia. × 0.6 mm LOC ; 2 FL ; Carbide ; TiAlN ; AH725
| Application | | High Feed Milling | Profile Milling | | Grade | AH725 |

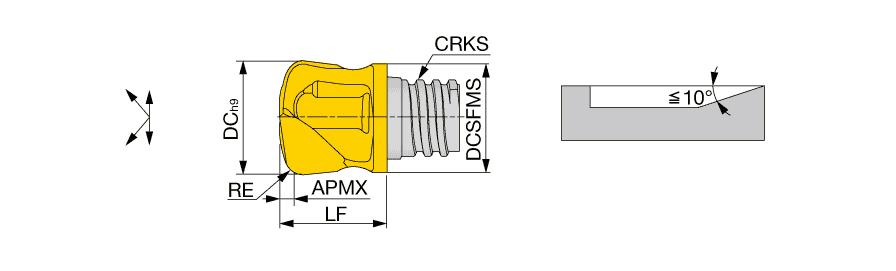

| Cutting Diameter (DC) | 10 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 2 mm | Maximum Feed per Tooth (fz(max)) | 0.6 mm/tooth |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.6 mm | Tool Type | Solid dovetail endmills |
| Functional Length (LF) | 12.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees |
Product Features
| Family Description | High feed, 2 flutes, roughing | Country of Origin | ISRAEL |
| Remarks | For VFX head, taper neck shank or Tungsten shank should be recommended. Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
Shipping Info
Package Weight
0.068
