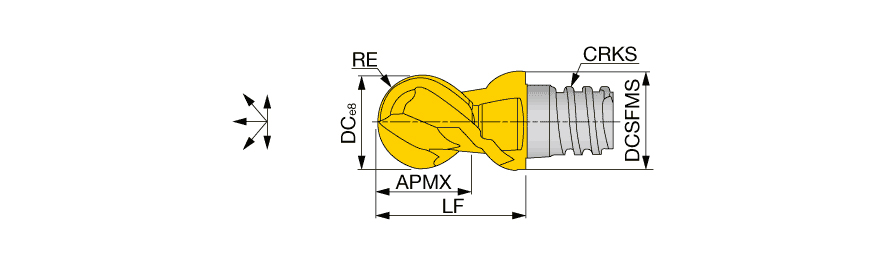

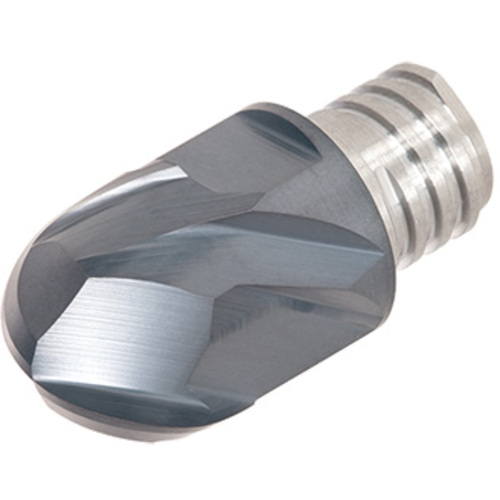

VBD120L09.0-BG-02S08 AH725
End Mill Head; 12 mm Dia. × 9 mm LOC ; 2 FL ; Carbide ; TiAlN ; AH725
| Application | | Profile Milling | | Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 5.98 mm | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 12 mm | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 9 mm | Body Material | Carbide |
| Functional Length (LF) | 16.5 mm |
Product Features
| Family Description | Ball, 2 flutes, semi finishing - finishing, helix cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.119
