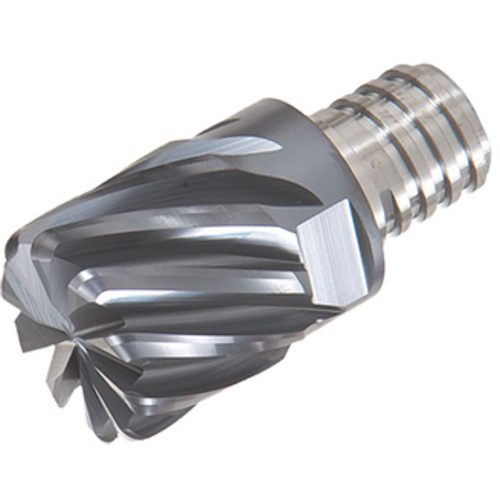

VED200L15.0R10-10S12 AH725
End Mill Head; 20 mm Dia. × 15 mm LOC ; 10 FL ; Carbide ; TiAlN ; AH725
| Application | | Shoulder Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 20 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 10 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.17 mm/tooth |
| Cutting Diameter Maximum (DCX) | 20 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Functional Length (LF) | 25.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | Square, 8, 10 flutes, roughing - finishing, small width of cut | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.525
