VED100L15.0C30R04S06 AH725

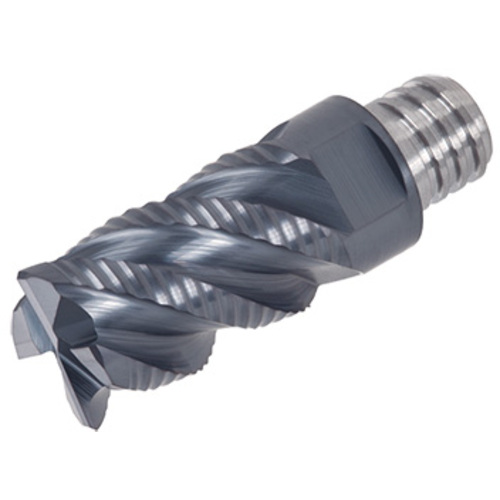

End Mill Head; 10 mm Dia. × 15 mm LOC ; 4 FL ; Carbide ; TiAlN ; AH725

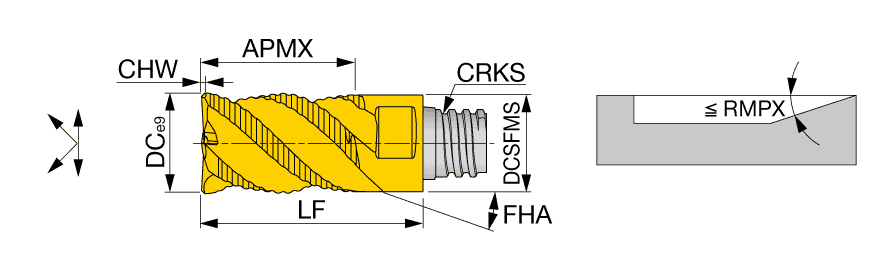

| Application | | Shoulder Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 10 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 15 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Functional Length (LF) | 22 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 46 Degrees |
Product Features
| Family Description | Square, 4, 5, 6 flutes, roughing, long cutting edge, serrated cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
