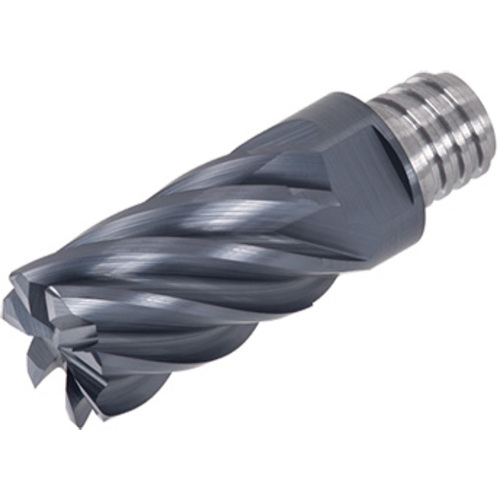

VED120L18.0R05I07S08 AH725
End Mill Head; 12 mm Dia. × 18 mm LOC ; 7 FL ; Carbide ; TiAlN ; AH725

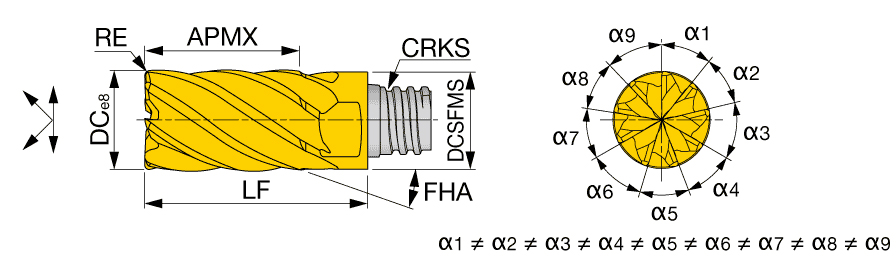

| Application | | Shoulder Milling | | Flute Helix Angle (FHA) | 40 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | AH725 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 7 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.5 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 18 mm | Tool Type | Solid carbide non center cutting endmills 90 |
| Functional Length (LF) | 27 mm | Body Material | Carbide |
Product Features
| Family Description | Square, 7, 9 flutes, roughing - finishing, long edge, variable helix and pitch, small width of cut | Country of Origin | ISRAEL |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
