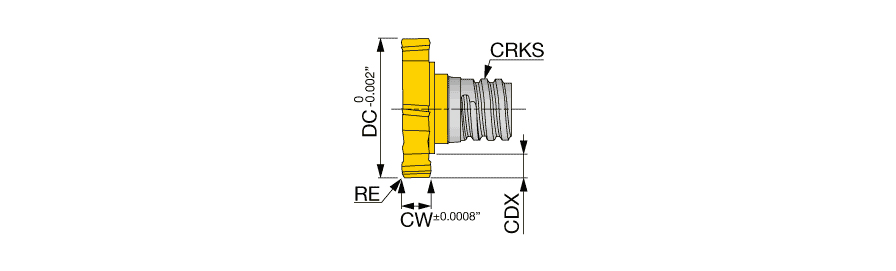

VTB08W187R016-U06S08 AH735
End Mill Head; 7/8″ Dia. × 0.187″ LOC ; 6 FL ; Carbide ; TiAlSiCrN ; AH735
| Application | | Slot Milling | | Flute Helix Angle (FHA) | 0 Degrees |
| Cutting Diameter (DC) | 7/8″ | Grade | AH735 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.015″ | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 7/8″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.187″ | Tool Type | Solid "T" slot cutters |
| Cutting Width (CW) | 0.187″ | Body Material | Carbide |
| Functional Length (LF) | 0.203″ |
Product Features
| Family Description | Slotting, 6 flutes, for T-slotting | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
