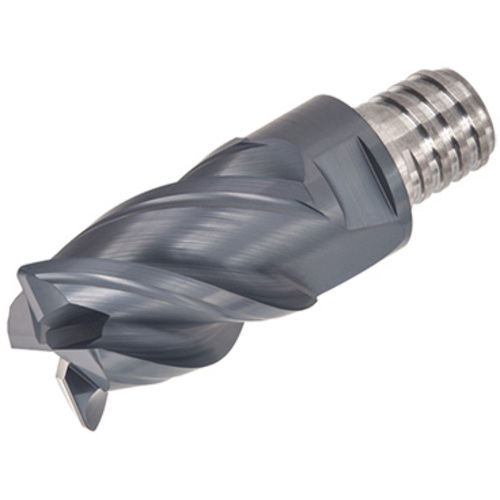

VEH320L38.0R00I04S21 AH715
End Mill Head; 32 mm Dia. × 38 mm LOC ; 4 FL ; Carbide ; TiAlSiCrN ; AH715

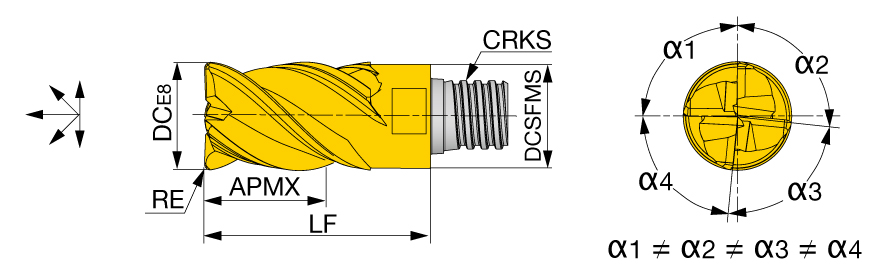

| Application | | Shoulder Milling | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 32 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 32 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 38 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 55 mm | Body Material | Carbide |
Product Features
| Family Description | Square, 4 flutes, roughing - finishing, variable helix and pitch | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
