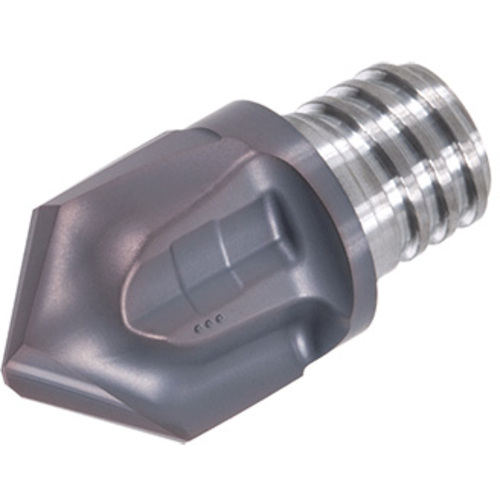

VCP160L15.5A60-02S10 AH715
End Mill Head; 1.5 mm Dia. × 16 mm LOC ; 2 FL ; Carbide ; TiAlSiCrN ; AH715

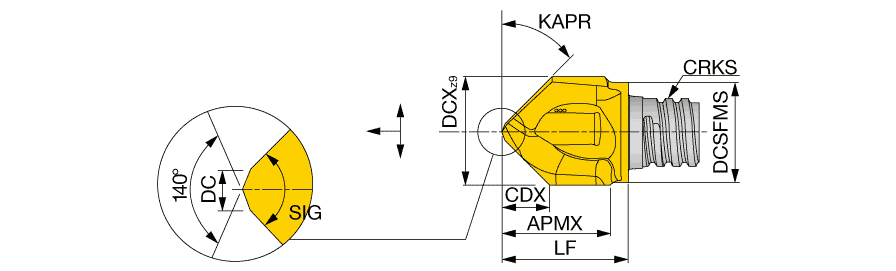

| Application | | Multi Functional tools | | Grade | AH715 |
| Cutting Diameter (DC) | 1.5 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 16 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 16 mm | Tool Type | Solid chamfering endmills |
| Functional Length (LF) | 19.9 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 0 Degrees |
Product Features
| Family Description | Chamfering & Spot drill, 2 flutes, chamfering angle: 30, 45, 60 degree | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
