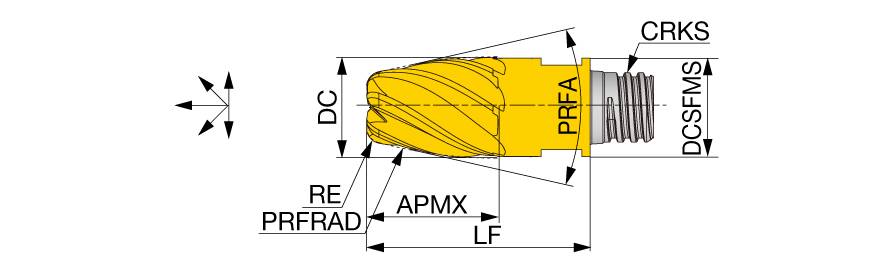

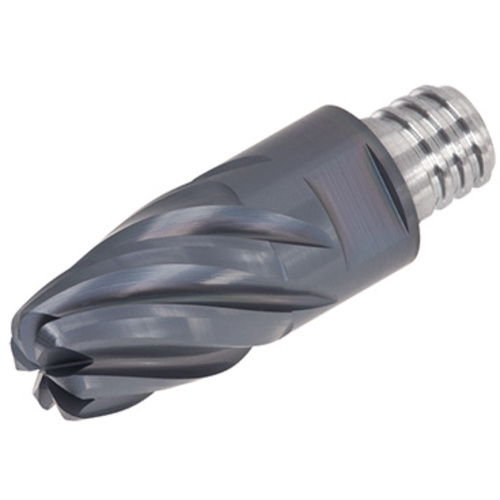

VBN160L18.0R600-6S10 AH715
End Mill Head; 16 mm Dia. × 18 mm LOC ; 6 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | Profile Milling | | Flute Helix Angle (FHA) | 35 Degrees |
| Cutting Diameter (DC) | 16 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 82.5 Degrees |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 16 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 18 mm | Body Material | Carbide |
| Functional Length (LF) | 33.5 mm |
Product Features
| Family Description | Bull nose, 6 flutes, semi finishing - finishing, high productive profiling | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
Shipping Info
Package Weight
0.000
