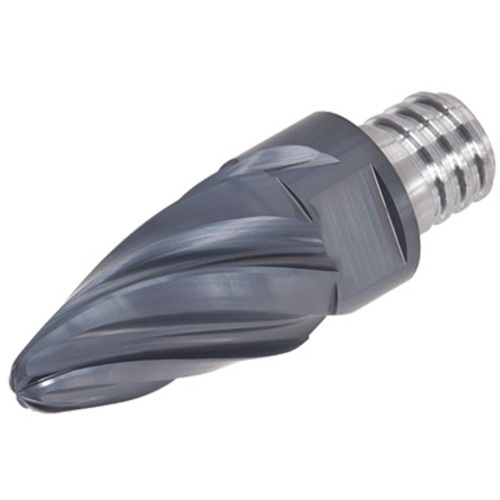

VBO100L15.0R850-5S06 AH715
End Mill Head; 10 mm Dia. × 15 mm LOC ; 5 FL ; Carbide ; TiAlSiCrN ; AH715

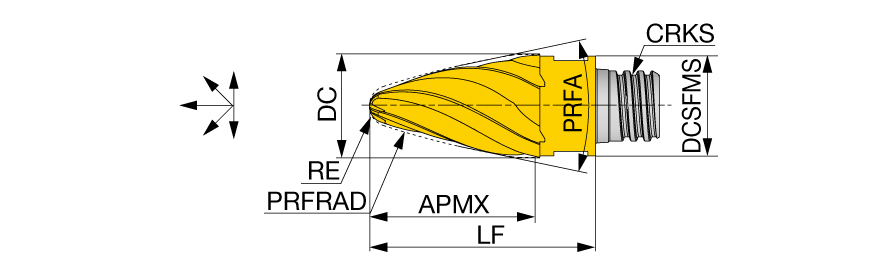

| Application | | Profile Milling | | Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Diameter (DC) | 10 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 5 | Tool Cutting Edge Angle (KAPR) | 76.4 Degrees |
| Corner Radius (RE) | 2 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 10 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 15 mm | Body Material | Carbide |
| Functional Length (LF) | 22 mm |
Product Features
| Family Description | Barrel, 4, 5 flutes, semi finishing - finishing, long edge, high productive profiling | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
