VFM120L03.6R02I06S05 AH715

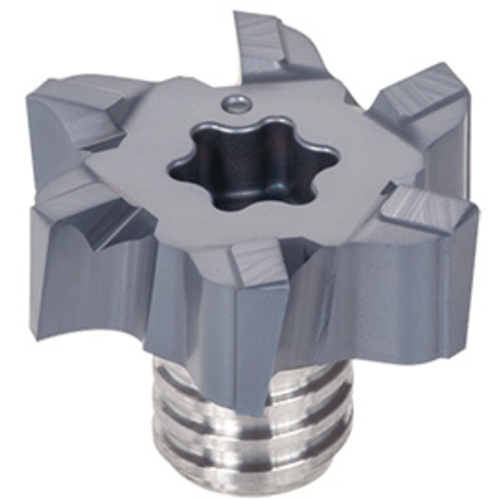

End Mill Head; 12 mm Dia. × 3.6 mm LOC ; 6 FL ; Carbide ; TiAlSiCrN ; AH715

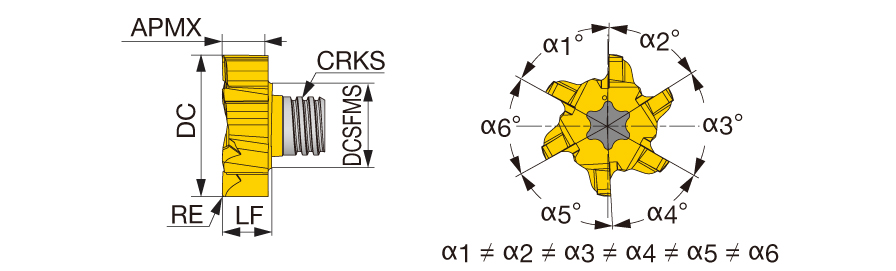

| Application | | Face Milling | | Flute Helix Angle (FHA) | 10 Degrees |
| Cutting Diameter (DC) | 12 mm | Grade | AH715 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Coating | TiAlSiCrN |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.2 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 12 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 3.6 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Functional Length (LF) | 4.4 mm | Body Material | Carbide |
Product Features
| Family Description | Face mill, 6 flutes, roughing - finishing, for face milling | Country of Origin | JAPAN |
| Remarks | Torque: Recommended torque (Nm) for clamping. Wrench sold separately. |
