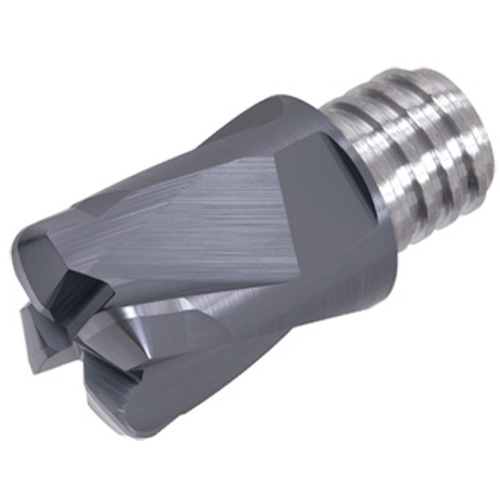

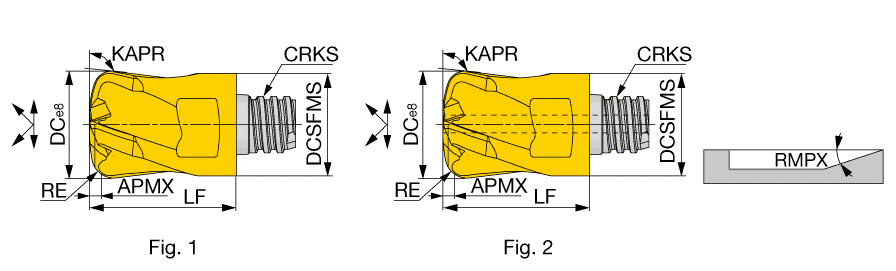

VFX160L0.80R22E04S10 AH715
End Mill Head; 16 mm Dia. × 0.8 mm LOC ; 4 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | High Feed Milling | Profile Milling | | Grade | AH715 |
| Cutting Diameter (DC) | 16 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 97 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 2.2 mm | Maximum Feed per Tooth (fz(max)) | 0.75 mm/tooth |
| Cutting Diameter Maximum (DCX) | 16 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.8 mm | Tool Type | Solid dovetail endmills |
| Functional Length (LF) | 20.5 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 20 Degrees |
Product Features
| Family Description | High feed, 4, 6 flutes, roughing, with coolant hole (2 items does not have coolant hole) | Country of Origin | JAPAN |
| Remarks | Slot milling is not recommended. Also max. ae < 0.4D Torque: Recommended torque (Nm) for clamping Wrench sold separately. |
Shipping Info
Package Weight
0.000
