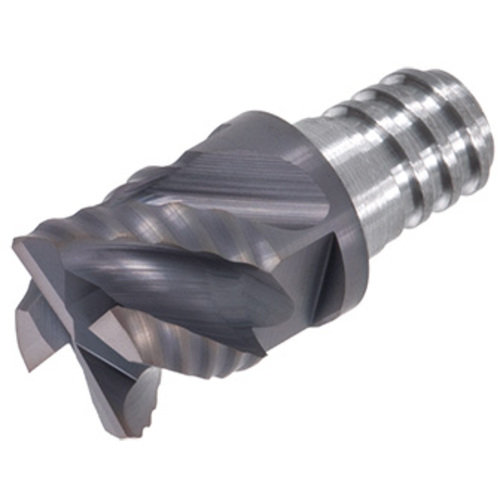

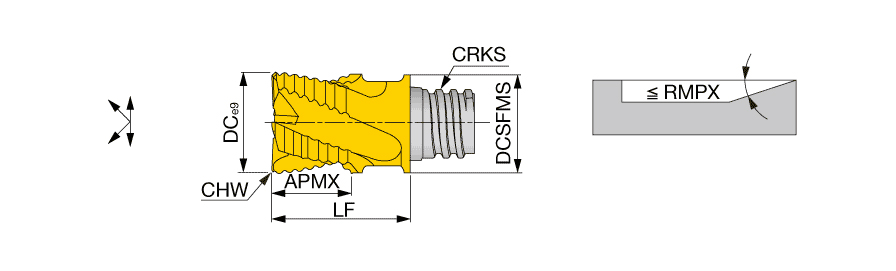

VEE160L12.0C40R05S10 AH715
End Mill Head; 16 mm Dia. × 12 mm LOC ; 5 FL ; Carbide ; TiAlSiCrN ; AH715
| Application | | Shoulder Milling | | Grade | AH715 |
| Cutting Diameter (DC) | 16 mm | Coating | TiAlSiCrN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 5 | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 16 mm | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Cutting Edge Material | Carbide |
| Functional Length (LF) | 20.5 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
Product Features
| Family Description | Square, 4, 5, 6 flutes, roughing, serrated cutting edge | Country of Origin | JAPAN |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
