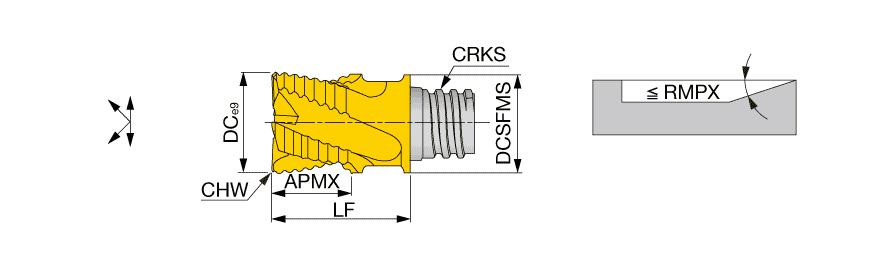

VEE100L86C020RU06S15 AH725
End Mill Head; 1″ Dia. × 0.866″ LOC ; 6 FL ; Carbide ; TiAlN ; AH725
| Application | | Shoulder Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 1″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1″ | Maximum Feed per Tooth (fz(max)) | 0.007 in/tooth |
| Depth of Cut Maximum (APMX) | 0.866″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.457″ | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
Product Features
| Family Description | Square, 4, 5, 6 flutes, roughing, serrated cutting edge | Country of Origin | ISRAEL |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench sold separately. |
