VEE100L86C024IU04S15 AH725

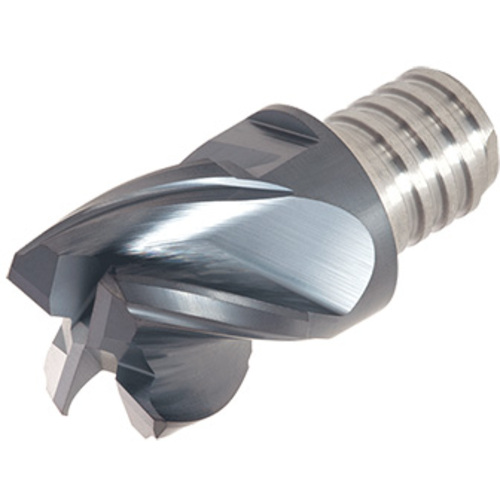

End Mill Head; 1″ Dia. × 0.863″ LOC ; 4 FL ; Carbide ; TiAlN ; AH725

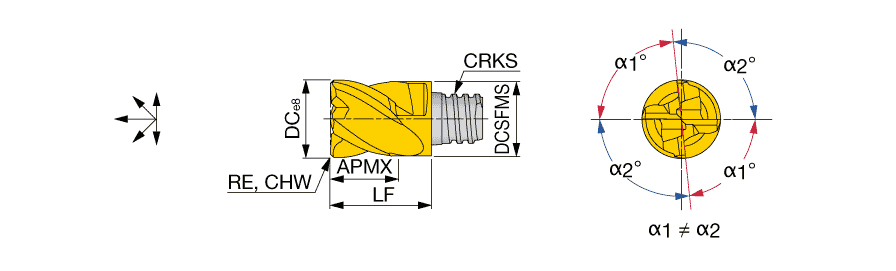

| Application | | Shoulder Milling | | Grade | AH725 |
| Cutting Diameter (DC) | 1″ | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1″ | Maximum Feed per Tooth (fz(max)) | 0.007 in/tooth |
| Depth of Cut Maximum (APMX) | 0.863″ | Cutting Edge Material | Carbide |
| Functional Length (LF) | 1.456″ | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
Product Features
| Family Description | Square, 4 flutes, roughing - finishing, variable pitch | Country of Origin | Israel |
| Remarks | Torque:Recommended torque (Nm) for clamping. Wrench not included. |
