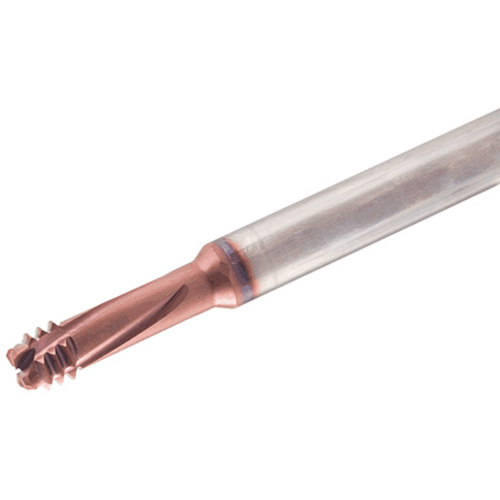

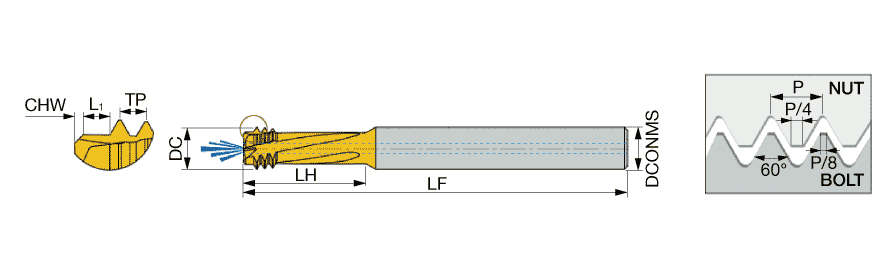

MTECD12118D352.0ISO AH725
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Threads per Inch Minimum (TPIN) | 12.7 |
| Cutting Diameter (DC) | 0.4646″ | Threads per Inch Maximum (TPIX) | 12.7 |
| Functional Length (LF) | 3.307″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Small diameter short left-hand cut (CNC code M04) solid carbide internal ISO profile drilling threading and chamfering endmills. High cutting speeds, low cutting forces due to the short contact resulting in accurate and parallel thread. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.260
