MTECS12118D502.0ISO AH725

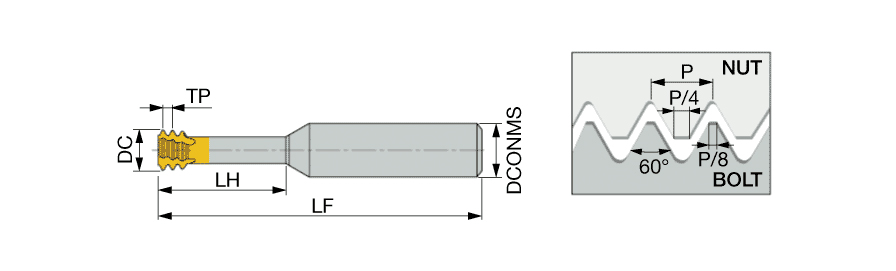

| Connection Diameter Machine Side (DCONMS) | 0.472″ | Threads per Inch Minimum (TPIN) | 12.7 |
| Cutting Diameter (DC) | 0.4646″ | Threads per Inch Maximum (TPIX) | 12.7 |
| Functional Length (LF) | 4.134″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features

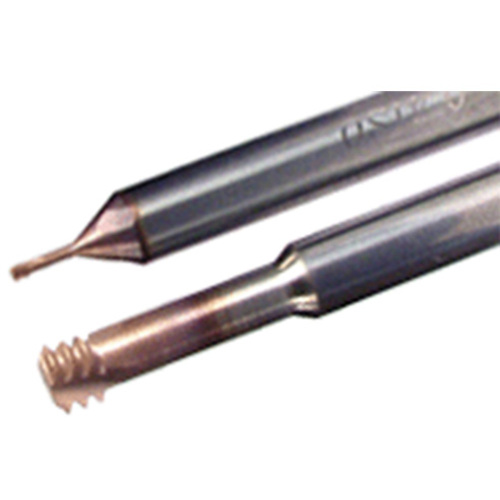

| Family Description | Small diameter, solid carbide internal ISO profile threading mills. Designed for high cutting speeds, short cycle time and low cutting forces. Short threading contact for accurate and parallel thread. | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.306
