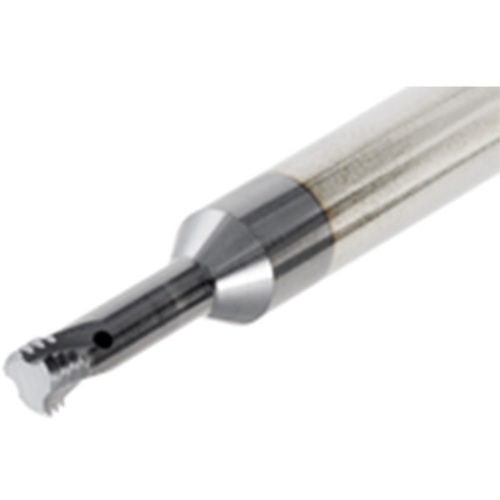

MTECS08067C2024UNJ AH725

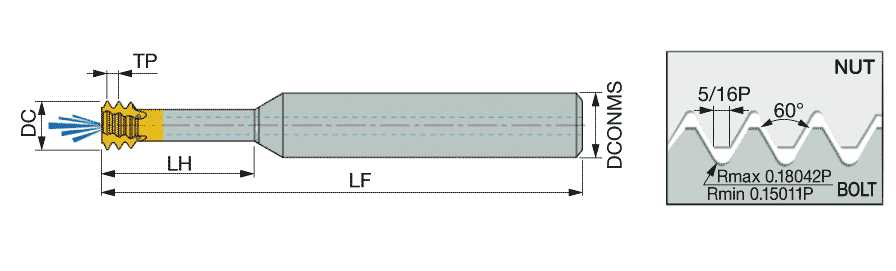

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Threads per Inch Minimum (TPIN) | 24 |
| Cutting Diameter (DC) | 0.264″ | Threads per Inch Maximum (TPIX) | 24 |
| Functional Length (LF) | 2.52″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Small diameter short solid carbide UNJ-type profile threading endmills with coolant holes directed to the cutting edges. Used for internal J-type thread length of up to 2.5xD in the aerospace industry and for other applications. | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
