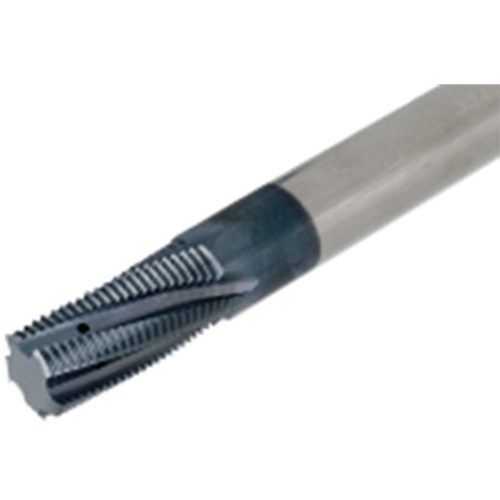

MTECZ08076C1027NPTF AH725

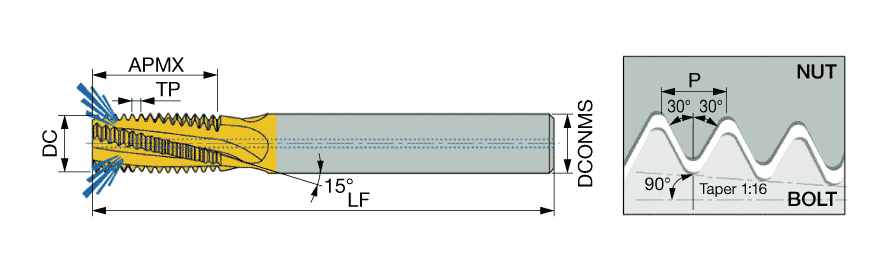

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Threads per Inch Minimum (TPIN) | 27 |
| Cutting Diameter (DC) | 0.2992″ | Threads per Inch Maximum (TPIX) | 27 |
| Functional Length (LF) | 2.52″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Ext. Thread Milling | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features
| Family Description | Solid carbide threading endmills with coolant holes located in the flutes used for internal or external NPTF thread profile. | Country of Origin | ISRAEL |
