MTECS0605C1928UN AH725

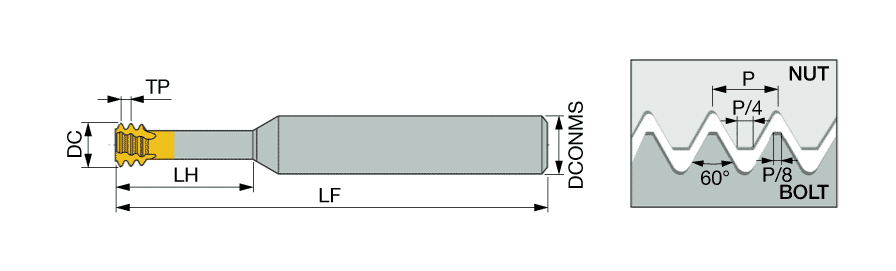

| Connection Diameter Machine Side (DCONMS) | 0.236″ | Threads per Inch Minimum (TPIN) | 28 |
| Cutting Diameter (DC) | 0.1969″ | Threads per Inch Maximum (TPIX) | 28 |
| Functional Length (LF) | 2.283″ | Cutting Edge Material | Carbide |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Coating | TiAlN | Grade | AH725 |
| Application | | Int. Thread Milling | | Tool Type | Solid carbide thread mills |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Body Material | Carbide |
Product Features

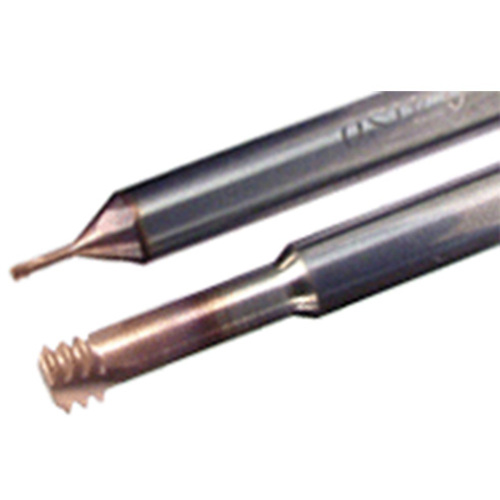

| Family Description | Small diameter solid carbide UN profile threading mills. High cutting speeds, short cycle time, low cutting forces due to the short threading contact resulting in accurate and parallel thread. | Country of Origin | ISRAEL |
