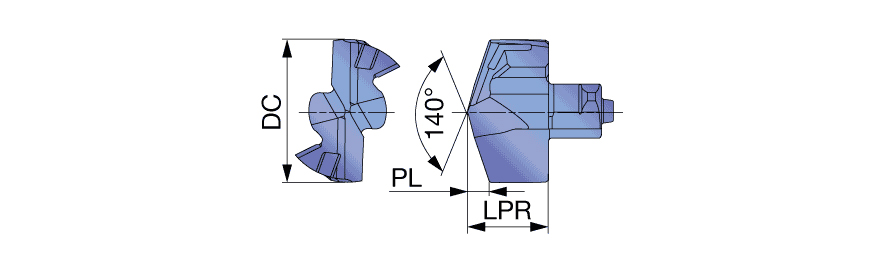

| Cutting Diameter (DC) | 5.2 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | General Drilling | | Point Length (PL) | 0.77 mm |
| Grade | AH725 | Cutting Diameter Maximum (DCX) | 5.2 mm |
| Tool Type | Drilling Heads | Cutting Diameter Minimum (DCN) | 5.2 mm |
| Protruding Length (LPR) | 3.7 mm | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 5 | Body Material | Carbide |
Product Features
| Family Description | Drill head for general purpose | Country of Origin | Israel |
| Remarks | Head diameter (DC): 4.00 17.90 / Head diameter (DC) tolerance: +0.018 / 0 Head diameter (DC): 18.00 25.90 / Head diameter (DC) tolerance: +0.021 / 0 |
