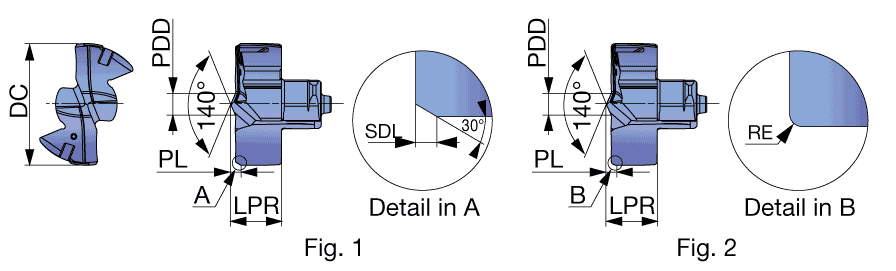

| Cutting Diameter (DC) | 0.7638″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Point Length (PL) | 0.057″ |
| Application | | General Drilling | | Cutting Diameter Maximum (DCX) | 0.7638″ |
| Grade | AH9130 | Cutting Diameter Minimum (DCN) | 0.7638″ |
| Protruding Length (LPR) | 0.307″ | Body Material | Carbide |
| Insert Seat Size Code (SSC) | 19 |
Product Features

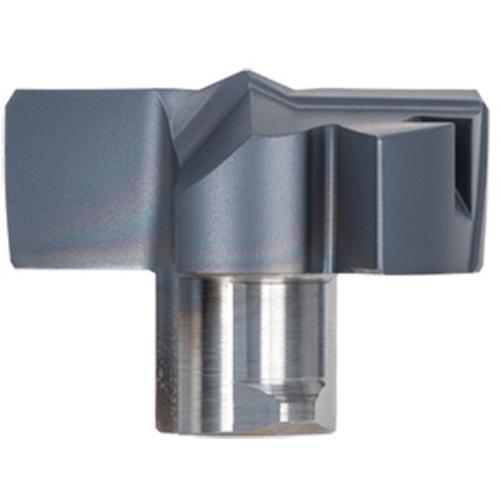

| Family Description | Drill head, flat geometry head type. | Country of Origin | Japan |
| Remarks | Head diameter : 6.00 17.90 / Head diameter tolerance: DC + 0.018 / 0 Head diameter : 18.00 25.90 / Head diameter tolerance: DC + 0.021 / 0 |
