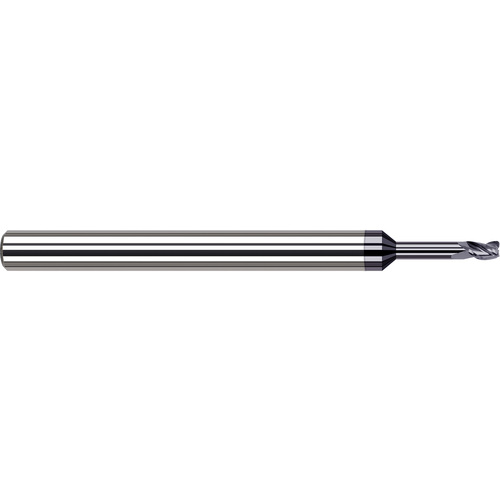

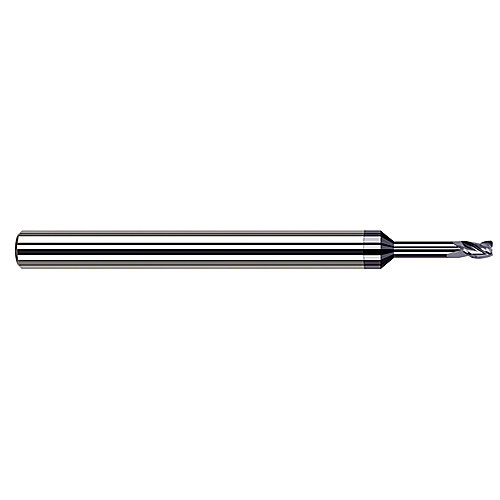

Variable Helix End Mills for Medium Alloy Steels - 0.1250″ (1/8″) Cutter Diameter × 0.0150″ (1/64″) Radius × 0.1870″ (3/16″) Length of Cut × 0.6250″ (5/8″) Reach Carbide Corner Radius End Mill for Medium Alloy Steels, 4 Flutes, AlTiN Coated
SQ End Mill; 1/8″ Dia. × 3/16″ LOC × 1/8″ Shank Dia. × 2-1/2″ OAL ; 1/64″ RE ; 4 FL ; 5/8″ LBS ; Carbide ; AlTiN
| Cutting Diameter (DC) | 1/8″ | Usable Length (LU) | 5/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 3/16″ | Corner Radius (RE) | 1/64″ |
| Overall Length (OAL) | 2-1/2″ | Length Group | 5D |
| Cutting Edge Material | Carbide | Flute Type | Stub |
| Coating | AlTiN | Decimal Equivalent | 0.125″ |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| End Shape | Corner Radius |
Product Features
| Country of Origin | USA |
Shipping Info
Package Weight
0.016
