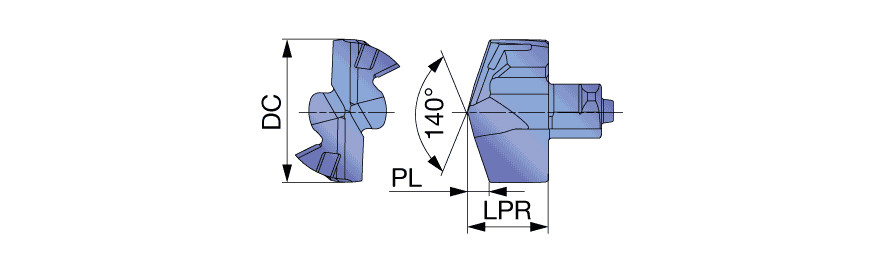

| Cutting Diameter (DC) | 0.563″ | Insert Seat Size Code (SSC) | 14 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Application | | General Drilling | | Point Length (PL) | 0.085″ |
| Grade | AH9130 | Cutting Diameter Maximum (DCX) | 0.563″ |
| Tool Type | Drilling Heads | Cutting Diameter Minimum (DCN) | 0.563″ |
| Protruding Length (LPR) | 0.313″ | Body Material | Carbide |
Product Features
| Family Description | Drill head for general purpose | Country of Origin | Japan |
| Remarks | Head diameter (DC): 4.00 17.90 / Head diameter (DC) tolerance: +0.018 / 0 Head diameter (DC): 18.00 25.90 / Head diameter (DC) tolerance: +0.021 / 0 |
Shipping Info
Package Weight
0.057
