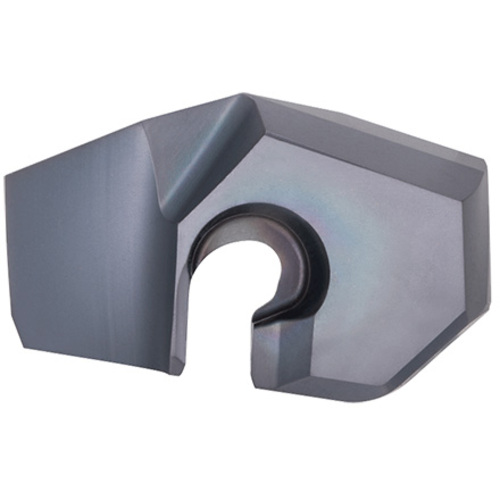

SMP1358 AH725 DRILL
Drill Head; 1.3583″ Dia. ; AH725 ; Carbide ; TiAlN

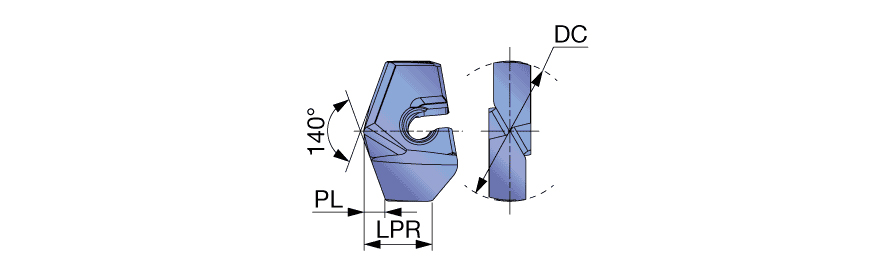

| Cutting Diameter (DC) | 1.3583″ | Measurement Type | Inch |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Overall Length (OAL) | 0.827″ |
| Application | | General Drilling | | Point Length (PL) | 0.214″ |
| Grade | AH725 | Cutting Diameter Maximum (DCX) | 1.3583″ |
| Protruding Length (LPR) | 0.531″ | Cutting Diameter Minimum (DCN) | 1.3583″ |
| Insert Seat Size Code (SSC) | 34 | Coating | TiAlN |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | DrillForceMeister SMP Drill heads for indexable head drill | Country of Origin | Japan |
| Remarks | Head diameter (DC): 20.0 29.9 / Head diameter tolerance: +0.014 / 0.015 Head diameter (DC): 30.0 41.0 / Head diameter tolerance: +0.014 / 0.02 |
