DEB1040 DX140

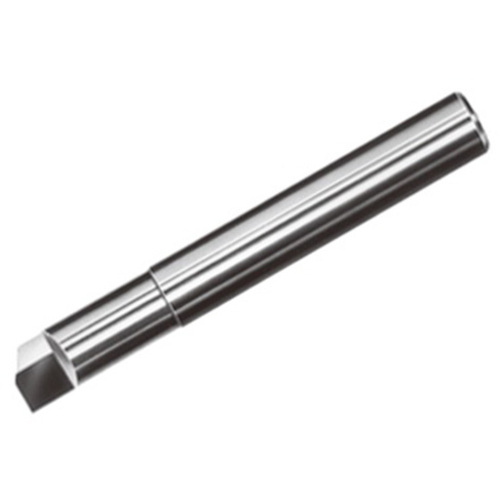

SQ End Mill; 4 mm Dia. × 3.5 mm LOC × 6 mm Shank Dia. × 45 mm OAL ; 1 FL ; PCD ; Uncoated

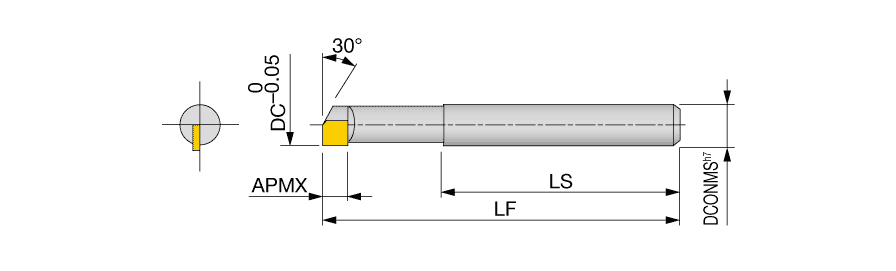

| Cutting Diameter (DC) | 4 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Depth of Cut Maximum (APMX) | 3.5 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 45 mm | Grade | DX140 |
| Cutting Edge Material | PCD | Head Length (LH) | 13 mm |
| Coating | Uncoated | Body Material | Carbide |
| Flute Count (NOF) | 1 | Measurement Type | Metric |
Product Features
| Family Description | High speed DIA endmill for aluminium | Country of Origin | JAPAN |
| Remarks | As cutting edge is very sharp, please handle carefully. Please keep the overhang length from milling chuck of tool as short as possible. Please use the endmill on a machine with sufficient rigidity. |
Shipping Info
Package Weight
0.068
