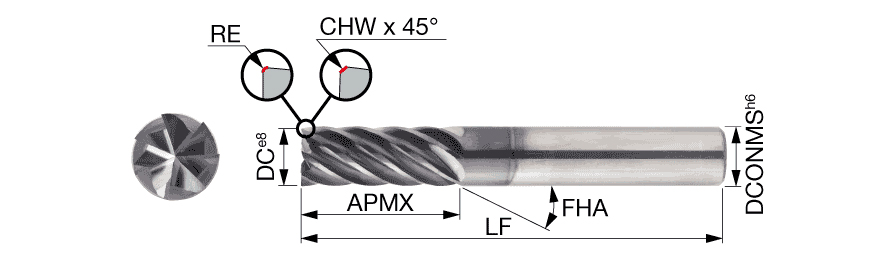

TEC100H7-40C10CF-100 AH710

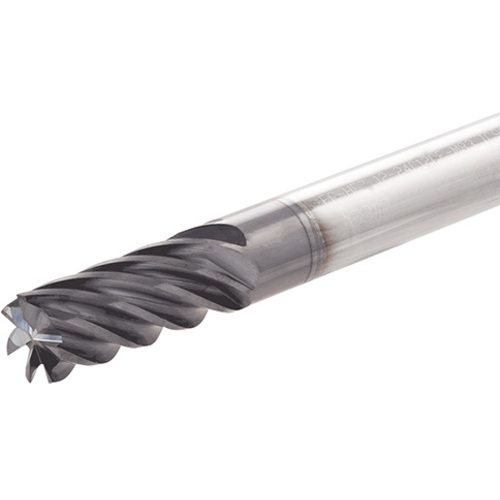

SQ End Mill; 10 mm Dia. × 40 mm LOC × 10 mm Shank Dia. × 100 mm OAL ; 7 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 40 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Overall Length (OAL) | 100 mm | Grade | AH710 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.035 mm/tooth |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer |
Product Features
| Family Description | 7 flute chatter dampening endmill, variable helix and variable pitch, for high speed finishing | Country of Origin | Israel |
Shipping Info
Package Weight
109
