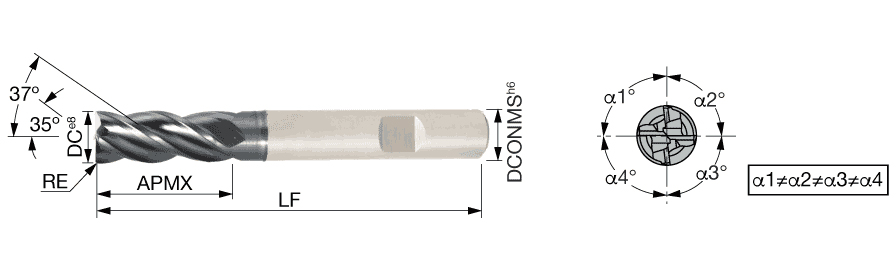

TECK200H4M-40W20CF-R10 AH725

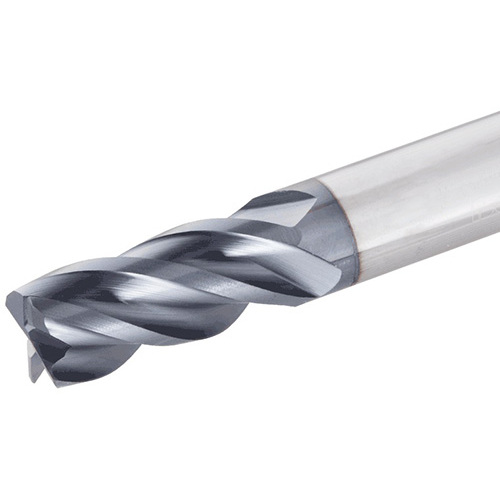

SQ End Mill; 20 mm Dia. × 40 mm LOC × 20 mm Shank Dia. × 104 mm OAL ; 1 mm RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 20 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 40 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 104 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 4 flute chatter dampening endmill, variable helix and variable pitch, for titanium machining | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
