TEC050A2-06W06-E54 AH725

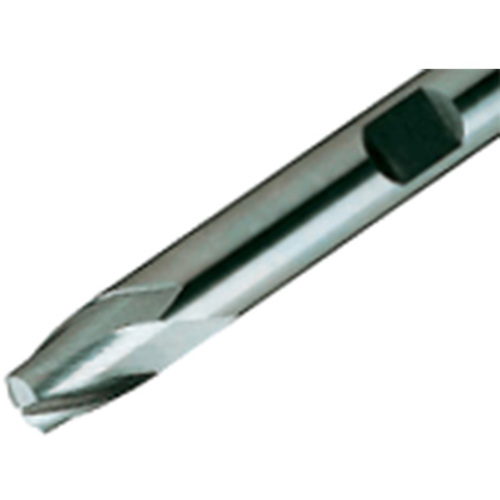

SQ End Mill; 5 mm Dia. × 6 mm LOC × 6 mm Shank Dia. × 54 mm OAL ; 2 FL ; Carbide ; TiAlN

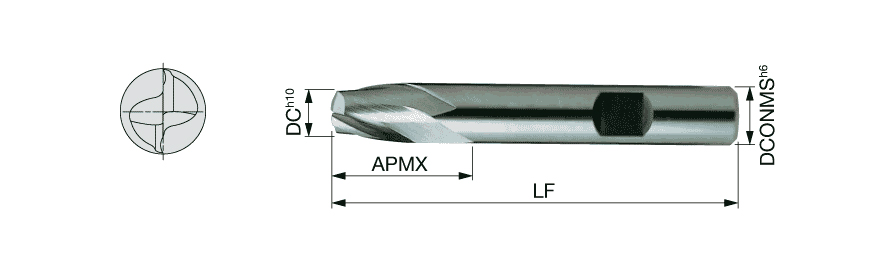

| Cutting Diameter (DC) | 5 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 6 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 54 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Head Length (LH) | 10.5 mm |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Shank Type | Weldon |
Product Features
| Family Description | 2 flute endmill, 30 deg helix angle, short type | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.051
