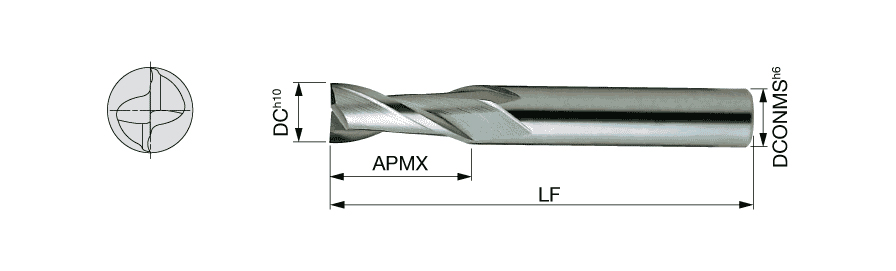

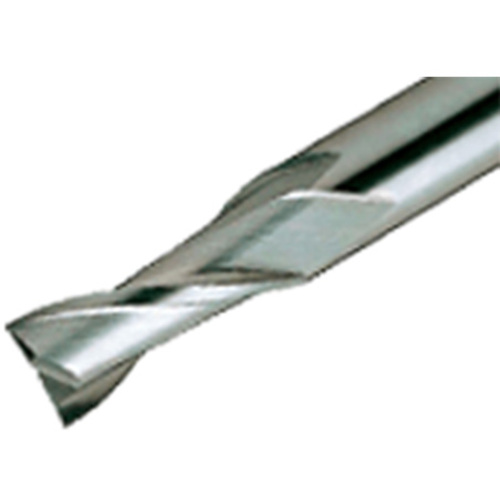

TEC025A2-08C025-E32 AH725
SQ End Mill; 2.5 mm Dia. × 8 mm LOC × 2.5 mm Shank Dia. × 32 mm OAL ; 2 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 2.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 2.5 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Grade | AH725 |
| Overall Length (OAL) | 32 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.03 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.005 mm/tooth |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square |
Product Features
| Family Description | 2 flute endmill, 30 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.011
