TEC200A4-32C20-E100 AH725

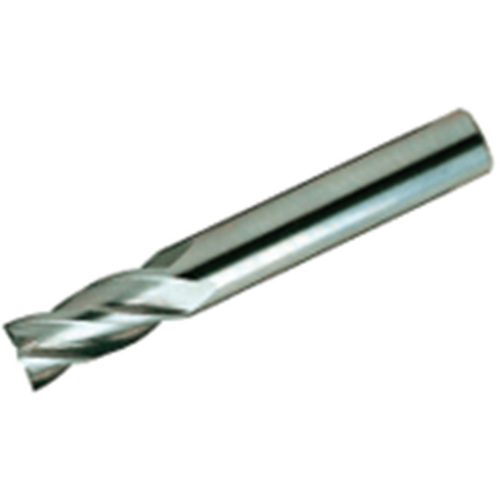

SQ End Mill; 20 mm Dia. × 32 mm LOC × 20 mm Shank Dia. × 100 mm OAL ; 4 FL ; Carbide ; TiAlN

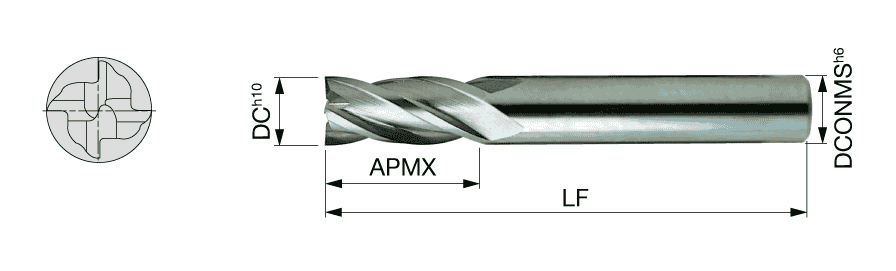

| Cutting Diameter (DC) | 20 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | AH725 |
| Overall Length (OAL) | 100 mm | Tool Type | Solid carbide center cutting endmills 90 |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square |
Product Features
| Family Description | 4 flute endmill, 30 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.955
