TEC060E3-16C06-E50 AH725

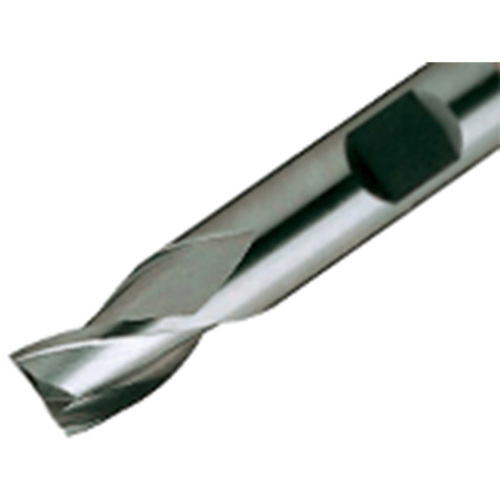

SQ End Mill; 6 mm Dia. × 16 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 3 FL ; Carbide ; TiAlN

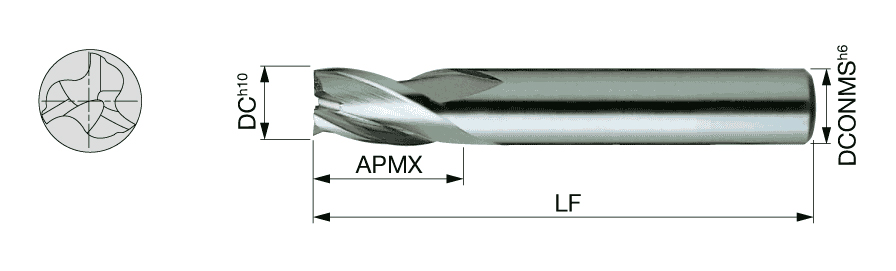

| Cutting Diameter (DC) | 6 mm | End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 16 mm | Application | | Shoulder Milling | |
| Overall Length (OAL) | 50 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
Product Features
| Family Description | 3 flute endmill, 30 deg or 38 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.046
