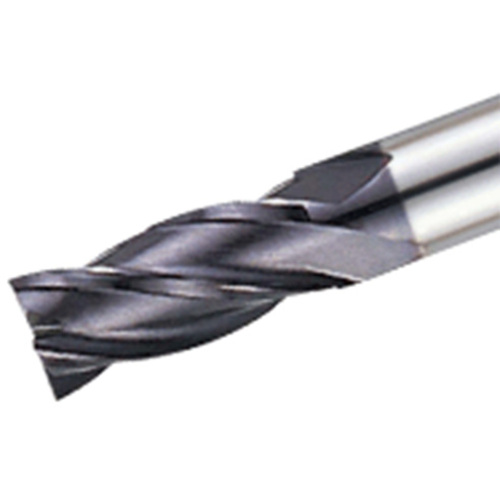

TEC140A4-26C14-83 AH750

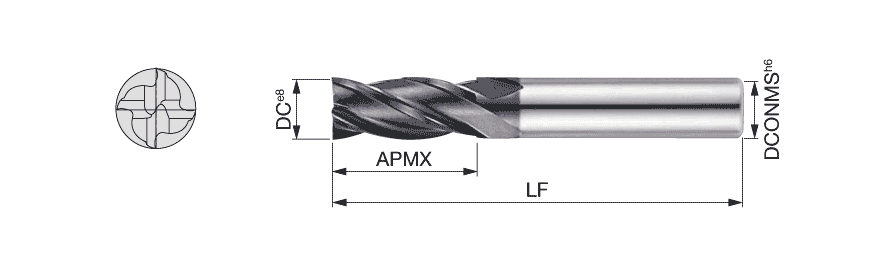

SQ End Mill; 14 mm Dia. × 26 mm LOC × 14 mm Shank Dia. × 83 mm OAL ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 14 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 14 mm | End Shape | Square |
| Depth of Cut Maximum (APMX) | 26 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Overall Length (OAL) | 83 mm | Application | | Shoulder Milling | |
| Cutting Edge Material | Carbide | Grade | AH750 |
| Coating | TiAlN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, 30 deg helix angle, for hardened steel up to 65 HRC | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.368
