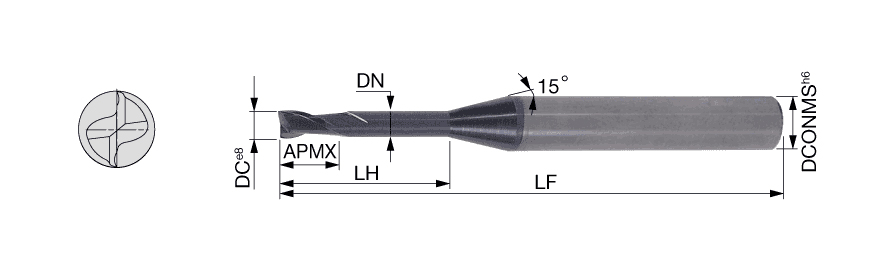

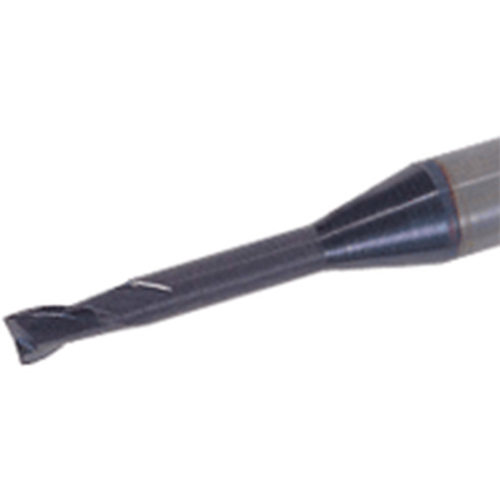

TEC015A2-023/16C4M50 AH750
SQ End Mill; 1.5 mm Dia. × 2.3 mm LOC × 4 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 1.5 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 2.3 mm | Grade | AH750 |
| Overall Length (OAL) | 50 mm | Neck Diameter (DN) | 1.41 mm |
| Cutting Edge Material | Carbide | Head Length (LH) | 16 mm |
| Coating | TiAlN | Neck Length (LN) | 16 mm |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square |
Product Features
| Family Description | 2 flute rib processing endmill, 30 deg helix angle, for hardened steel up to 55 HRC | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
