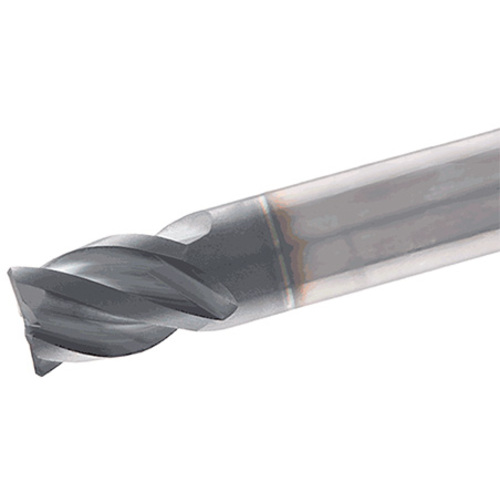

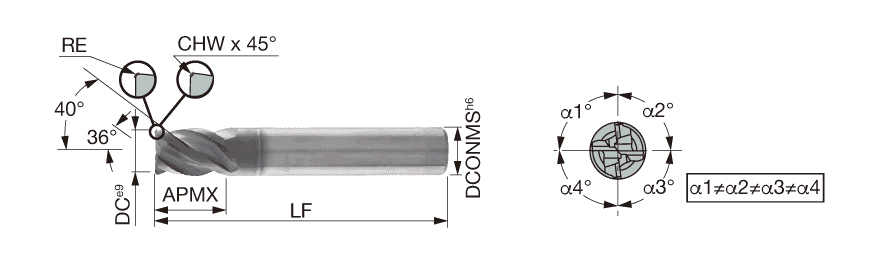

TEC080H4S-08C08CF-R04E63 AH725
SQ End Mill; 8 mm Dia. × 8 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 0.4 mm RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 8 mm | Corner Radius (RE) | 0.4 mm |
| Overall Length (OAL) | 63 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Flute Count (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
Product Features
| Family Description | 4 flute chatter dampening endmill, variable helix and variable pitch, short type | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.101
