TECP080H4L-16/26C8CF-R04 AH725

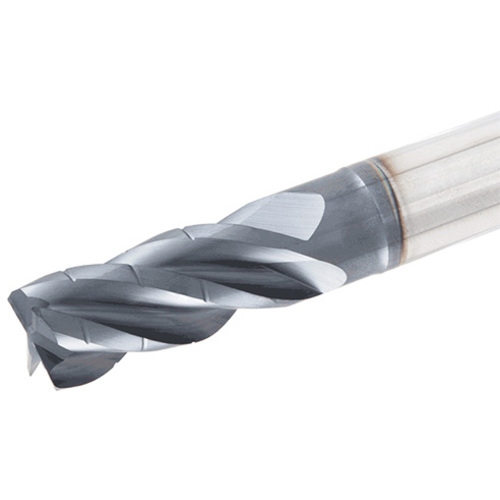

SQ End Mill; 8 mm Dia. × 16 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 0.4 mm RE ; 4 FL ; Carbide ; TiAlN

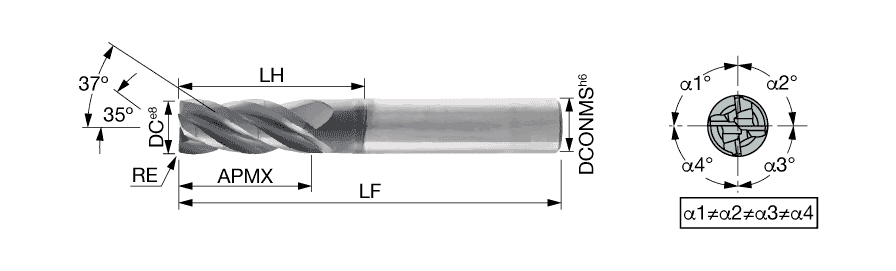

| Cutting Diameter (DC) | 8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 16 mm | Corner Radius (RE) | 0.4 mm |
| Overall Length (OAL) | 63 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Head Length (LH) | 26 mm |
| Coating | TiAlN | Neck Length (LN) | 26 mm |
| Flute Count (NOF) | 4 | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius |
Product Features
| Family Description | 4 flute roughing endmill, variable helix and variable pitch, with chip splitter, long overhang | Country of Origin | Israel |
Shipping Info
Package Weight
0.8
