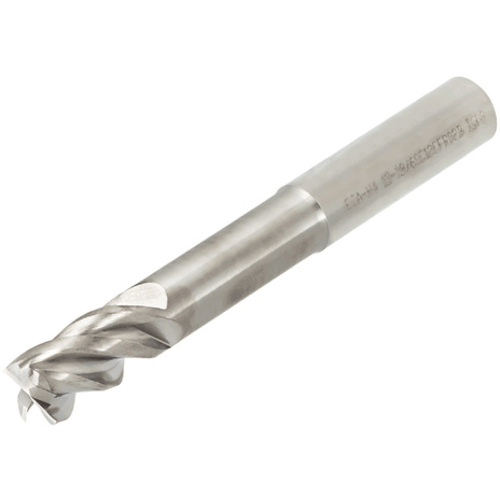

TECA080H4-16/24C08CF-R02 KS15F
SQ End Mill; 8 mm Dia. × 16 mm LOC × 8 mm Shank Dia. × 63 mm OAL ; 0.2 mm RE ; 4 FL ; Carbide ; Uncoated

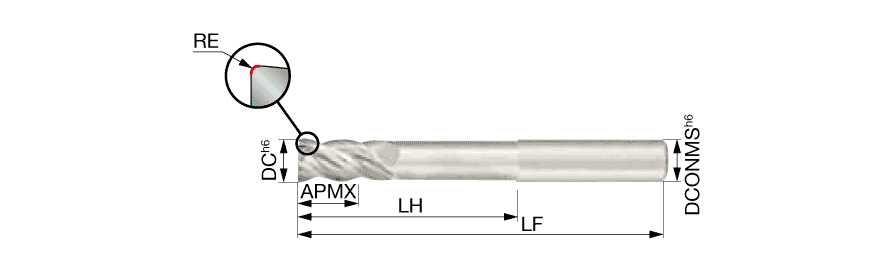

| Cutting Diameter (DC) | 8 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 16 mm | Grade | KS15F |
| Overall Length (OAL) | 63 mm | Head Length (LH) | 24 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 24 mm |
| Coating | Uncoated | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Shank Type | Round | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| End Shape | Corner Radius | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, variable helix and variable pitch, relieved neck type, for aluminium machining (1.5xD, 2xD) | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.093
