TECA160H3-32/80C16CF-R02C KS15F

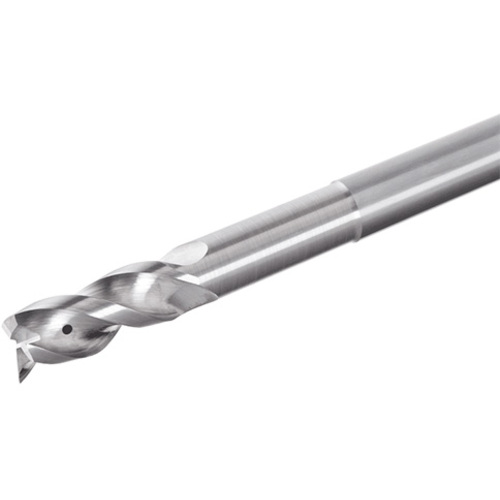

SQ End Mill; 16 mm Dia. × 32 mm LOC × 16 mm Shank Dia. × 128 mm OAL ; 0.2 mm RE ; 3 FL ; Carbide ; Uncoated

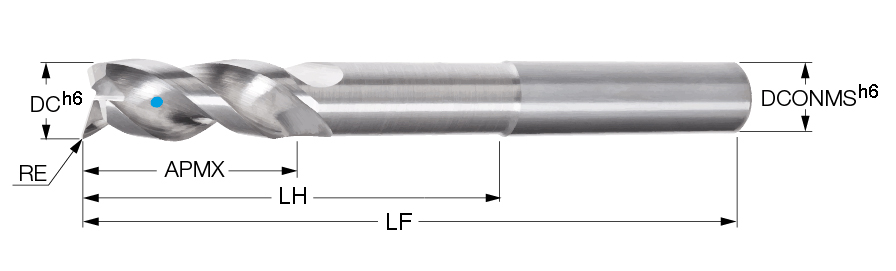

| Cutting Diameter (DC) | 16 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 32 mm | Grade | KS15F |
| Overall Length (OAL) | 128 mm | Head Length (LH) | 80 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 80 mm |
| Coating | Uncoated | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Shank Type | Round | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| End Shape | Corner Radius | Body Material | Carbide |
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
Product Features
| Family Description | 3 flute endmill, variable helix, center cutting edge with coolant holes, for aluminium machining | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.679
