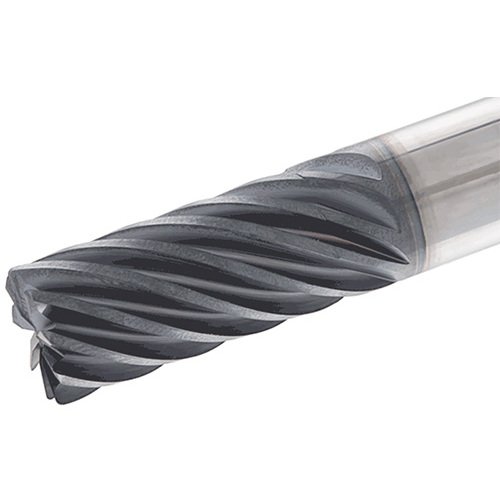

TECK060H7-13C06CF-R02T57 AH725
SQ End Mill; 6 mm Dia. × 13 mm LOC × 6 mm Shank Dia. × 57 mm OAL ; 0.2 mm RE ; 7 FL ; Carbide ; TiAlN

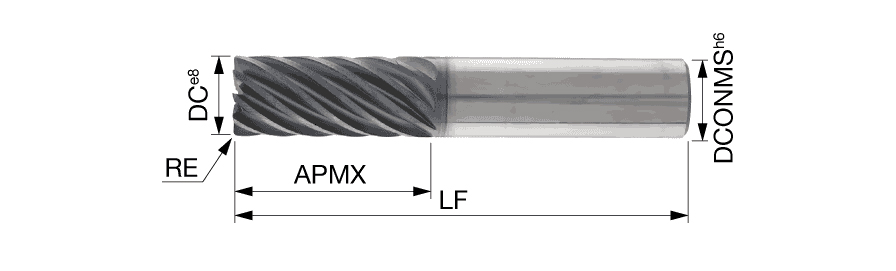

| Cutting Diameter (DC) | 6 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 13 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 57 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 7 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 7 or 9 flute chatter dampening endmill, variable helix and variable pitch, for titanium machining | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
