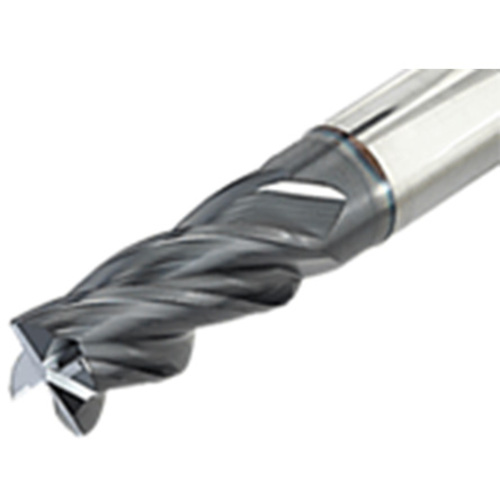

TEC060H4X-12/25W06CF-R02 AH725

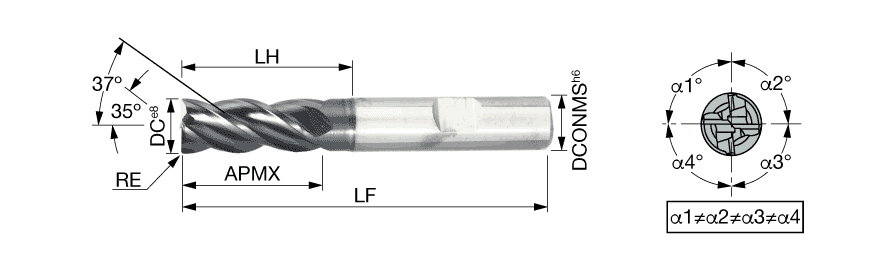

SQ End Mill; 6 mm Dia. × 12 mm LOC × 6 mm Shank Dia. × 61 mm OAL ; 0.2 mm RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 6 mm | Corner Radius (RE) | 0.2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Grade | AH725 |
| Overall Length (OAL) | 61 mm | Head Length (LH) | 25 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 25 mm |
| Coating | TiAlN | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Shank Type | Weldon | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| End Shape | Corner Radius | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Shoulder Milling | |
Product Features
| Family Description | 4 flute chatter dampening endmill, variable helix and variable pitch, extra long neck type | Country of Origin | ISRAEL |
