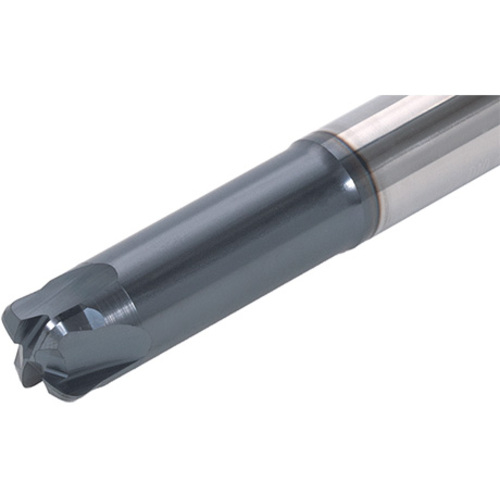

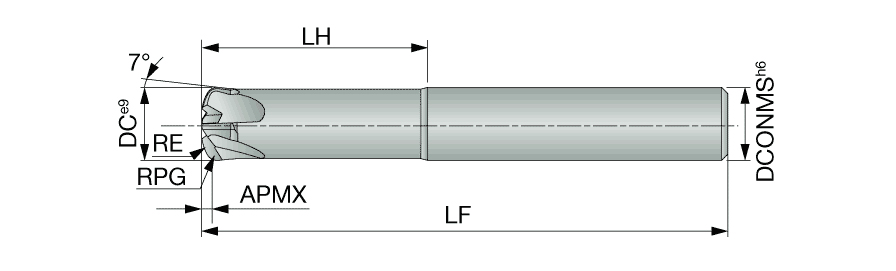

TEFF160N4-055/42C16R26M AH750
SQ End Mill; 16 mm Dia. × 0.8 mm LOC × 16 mm Shank Dia. × 92 mm OAL ; 2.6 mm RE ; 4 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 16 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Application | | High Feed Milling | Profile Milling | |
| Depth of Cut Maximum (APMX) | 0.8 mm | Corner Radius (RE) | 2.6 mm |
| Overall Length (OAL) | 92 mm | Grade | AH750 |
| Cutting Edge Material | Carbide | Head Length (LH) | 42 mm |
| Coating | TiAlN | Neck Length (LN) | 42 mm |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.6 mm/tooth |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
Product Features
| Family Description | 4 flute high feed endmill | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.000
