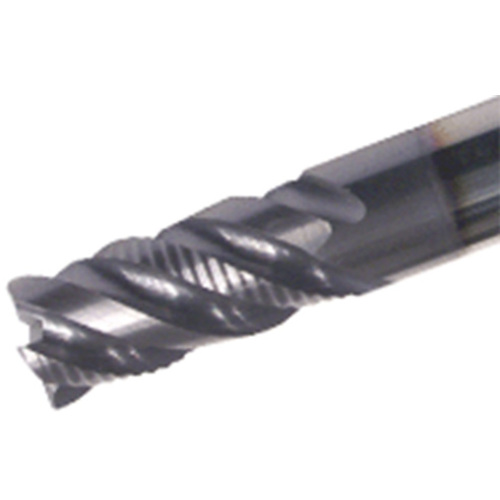

TEFS100B44-22/32W10-72 AH725
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 4 FL ; Carbide ; TiAlN

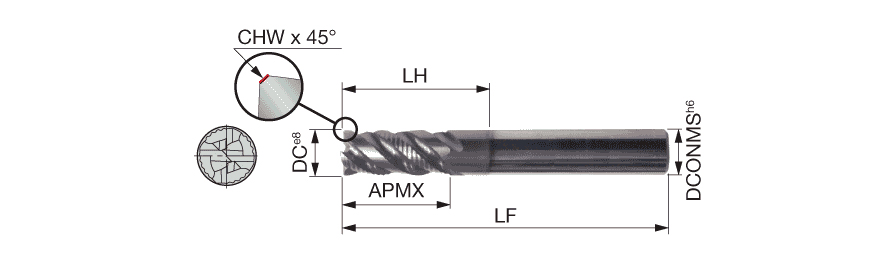

| Cutting Diameter (DC) | 10 mm | Application | | Shoulder Milling | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | AH725 |
| Overall Length (OAL) | 72 mm | Head Length (LH) | 32 mm |
| Cutting Edge Material | Carbide | Neck Length (LN) | 32 mm |
| Coating | TiAlN | Tool Type | Solid carbide center cutting endmills 90 |
| Flute Count (NOF) | 4 | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Shank Type | Weldon | Minimum Feed per Tooth (fz(min)) | 0.035 mm/tooth |
| End Shape | Chamfer | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
Product Features
| Family Description | 4 flute endmill, 45 deg helix angle, roughing and finishing combination type | Country of Origin | ISRAEL |
