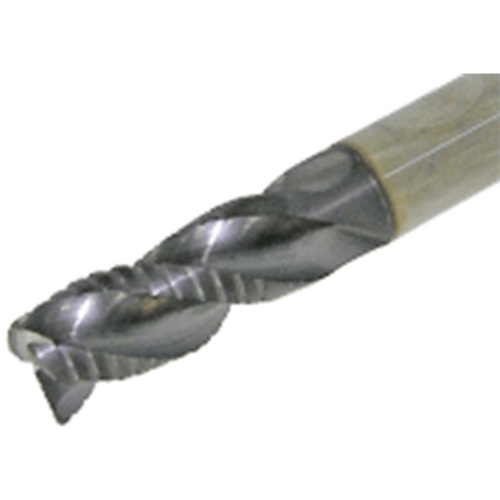

TECP100E3L-22/32W10S72 AH725
SQ End Mill; 10 mm Dia. × 22 mm LOC × 10 mm Shank Dia. × 72 mm OAL ; 3 FL ; Carbide ; TiAlN
| Cutting Diameter (DC) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 22 mm | Corner Chamfer Width (CHW) | 0.4 mm |
| Overall Length (OAL) | 72 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Head Length (LH) | 32 mm |
| Coating | TiAlN | Neck Length (LN) | 32 mm |
| Flute Count (NOF) | 3 | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Chamfer |
Product Features
| Family Description | 3 flute roughing endmill, 38 deg helix angle, with chip splitter | Country of Origin | ISRAEL |
Shipping Info
Package Weight
0.165
