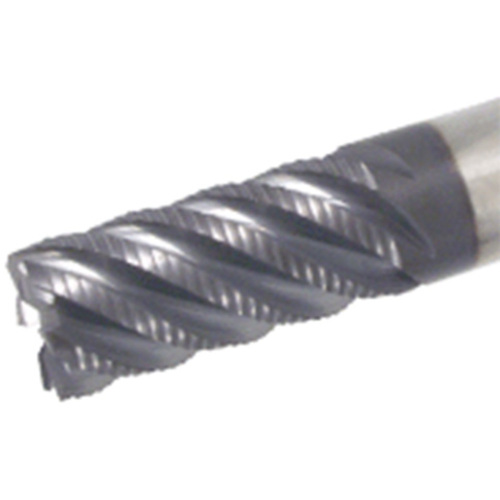

TECR250B6MF-52W25-121 AH725
SQ End Mill; 25 mm Dia. × 52 mm LOC × 25 mm Shank Dia. × 121 mm OAL ; 6 FL ; Carbide ; TiAlN

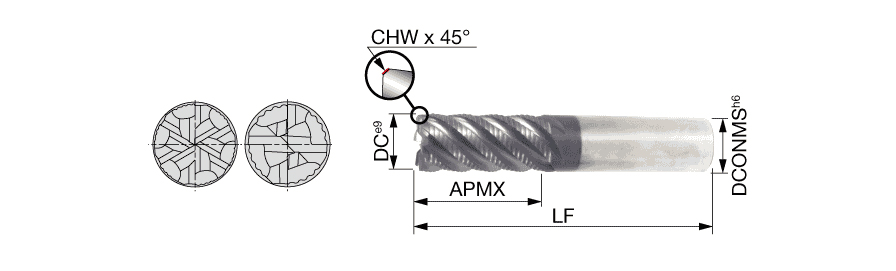

| Cutting Diameter (DC) | 25 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Application | | Shoulder Milling | |
| Depth of Cut Maximum (APMX) | 52 mm | Corner Chamfer Width (CHW) | 0.9 mm |
| Overall Length (OAL) | 121 mm | Grade | AH725 |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90 |
| Coating | TiAlN | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Flute Count (NOF) | 6 | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Shank Type | Weldon | Body Material | Carbide |
| End Shape | Chamfer | Measurement Type | Metric |
Product Features
| Family Description | 4 or 6 flute roughing endmill, 45 deg helix angle | Country of Origin | ISRAEL |
Shipping Info
Package Weight
1.702
